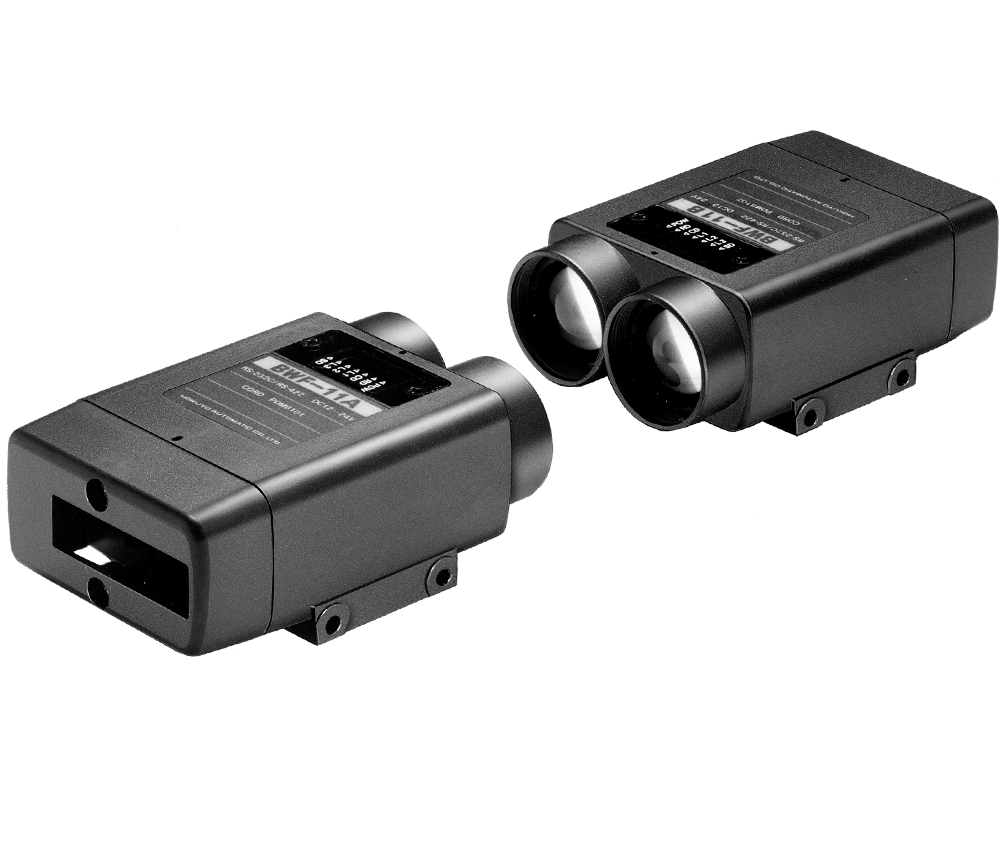

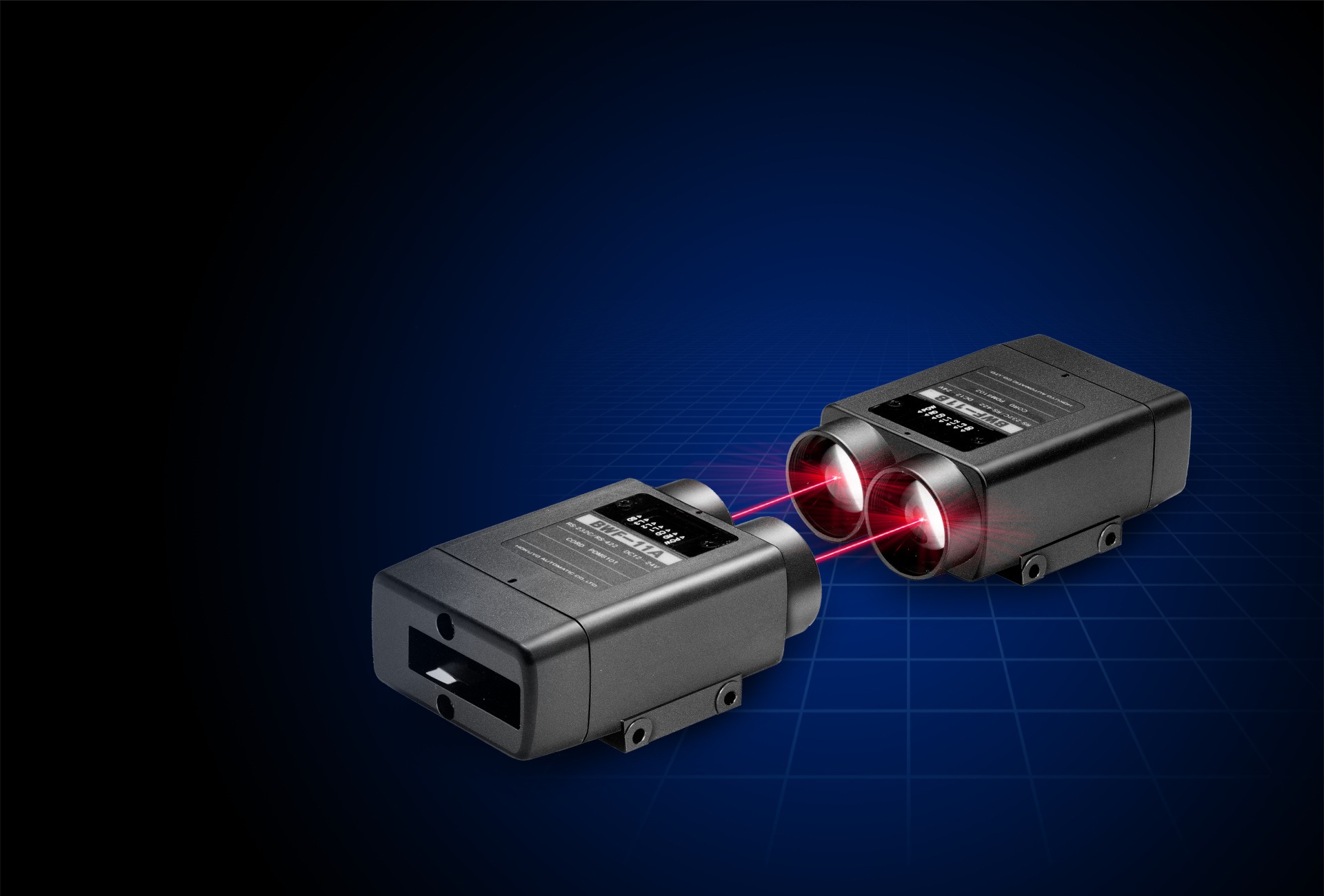

BWF-11A-CE/BWF-11B-CE
Overview
Long Range serial data transmission up to a distance of 100m.
Common Applications
Automatic Storage and Retrieval Systems (ASRS)
Operation Benefits
Range – 100m
Communication – Full duplex two way transmission
Dimensions (l x w x h) – 44mm x 84mm x 130.3mm
Weight – 500g approx
Technical Information
Technology – Data Transmission
Range – 100m
Product Details
Long Range serial data transmission up to a distance of 100m.
- Technology - Data Transmission
- Range - 100m
- Directional Angle (full angle) - +/- 2 degrees
- Transmission method - Full duplex two way transmission
- Transmission time - 30ms (rotational speed 2000rpm)
- Modulation Method - FSK Modulation
- Power Source - 12 to 24VDC (10 to 30VDC)
- Current Consumption - 150mA or less (at 12VDC), 80mA or less at 24VDC
- Connection - Connector (25 pins, D-sub connector), M3 screw terminal at power source
- Ambient Illuminance - 20,000lux or less (both sun light and incandescant lamp)
- Ambient Temperature/humidity - -10°C to +50°C (no icing, no condensing), 85%RH or less (no icing, no condensing)
- Vibration Resistance - Double amplitude, 1.5mm, 10 to 30Hz, each 2 hour in X, Y and Z directions
- Impact Resistance - 500m/s2 each 10 time in X, Y and Z directions
- Protective Structure - IP60 (IEC standard), available up to IP64 by user option
- Case Material - ABS resin
- Weight- 500g approx
Resources & Information
Additional information
Additional information
| Manufacturer | Hokuyo |
|---|
