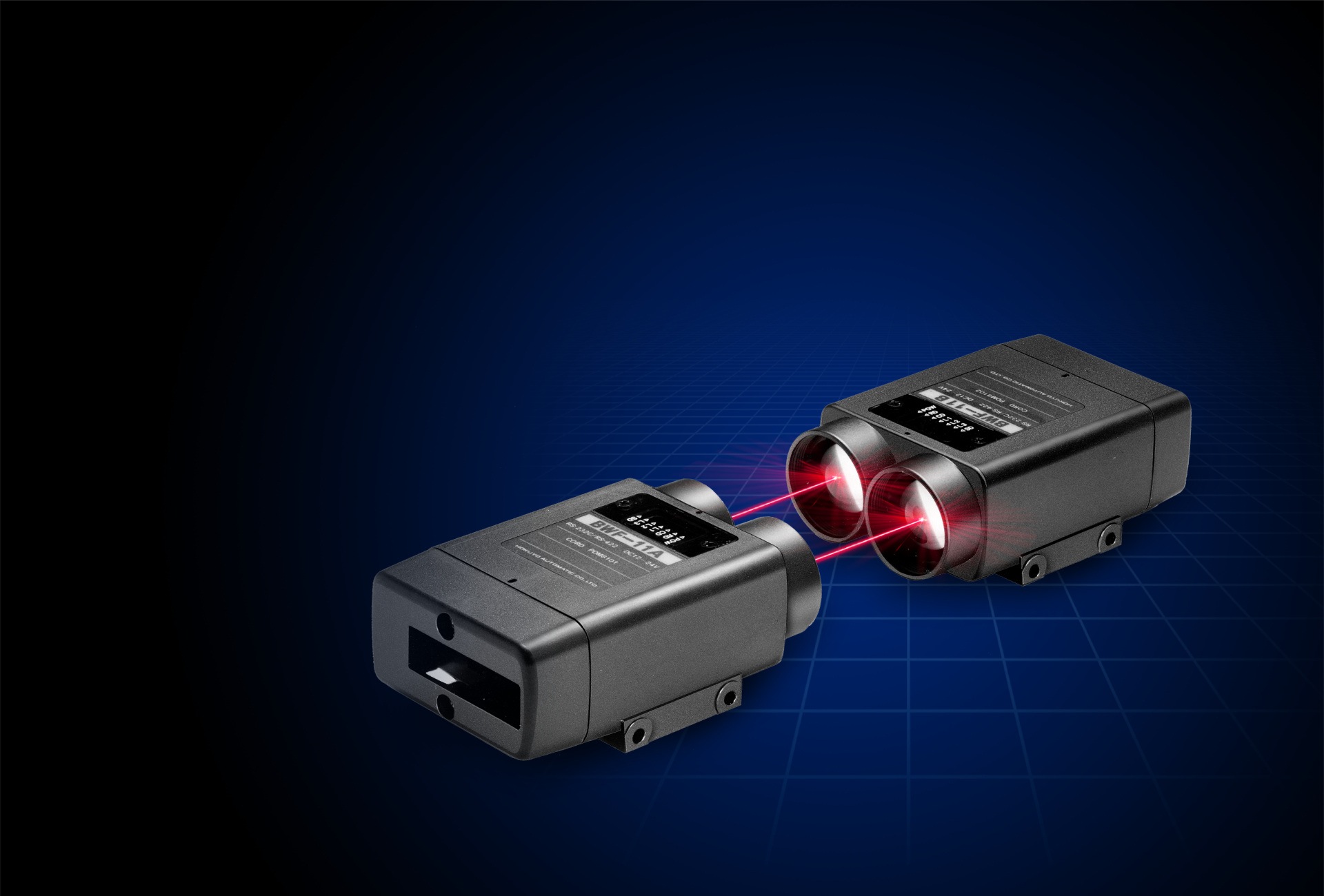

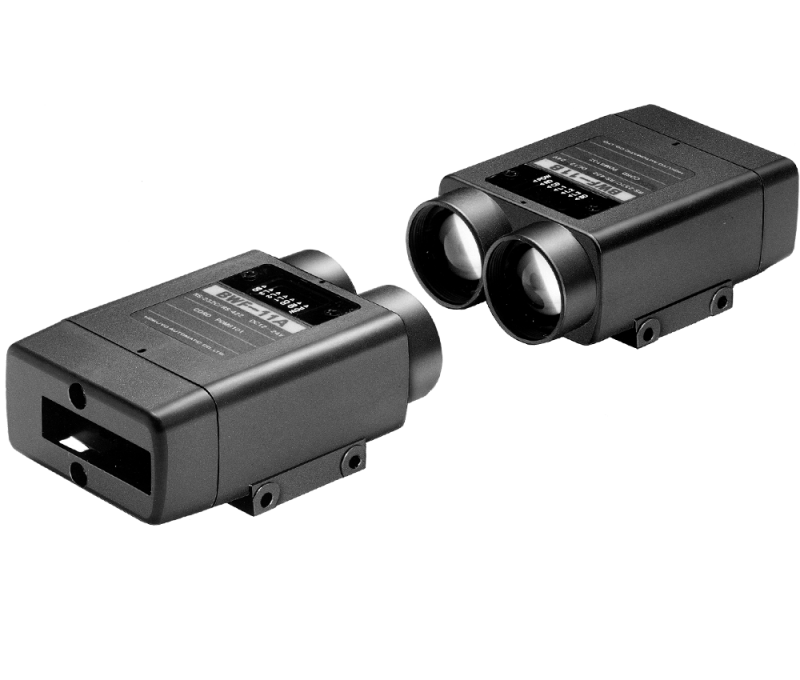

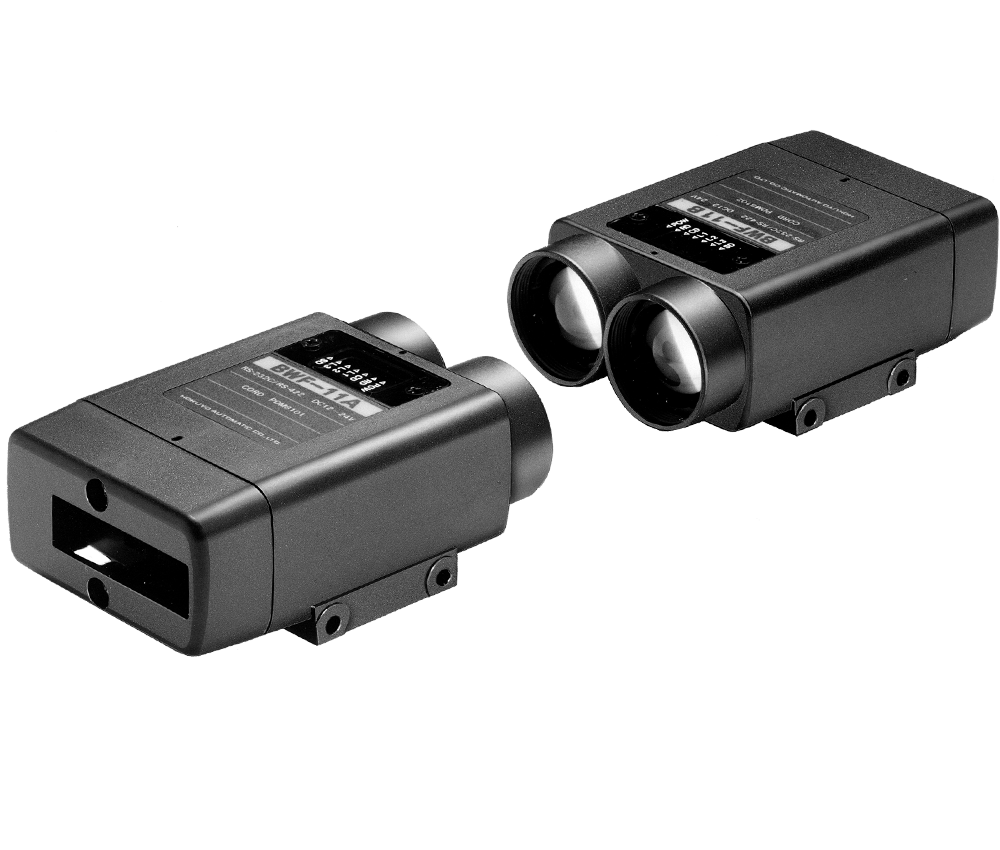

BWF-21A-CE/BWF-21B-CE

Overview

Range - 200m
Communication - Full duplex two way transmission
Dimensions (l x w x h) - 44mm x 84mm x 130.3mm
Weight - 500g approx

Technology - Data Transmission
Range -200m

Product enquiry

Technical manual download

Data sheet download

Technology - Data Transmission
Range - 200m
Directional Angle (full angle) - +/- 1 degrees
Transmission method - Full duplex two way transmission
Transmission time - 30ms (rotational speed 2000rpm)
Modulation Method - FSK Modulation
Current Consumption - 150mA or less (at 12VDC), 80mA or less at 24VDC
Connection - Connector (25 pins, D-sub connector), M3 screw terminal at power source
Ambient Illuminance - 20,000lux or less (both sun light and incandescant lamp)
Ambient Temperature/humidity - -10°C to +50°C (no icing, no condensing), 85%RH or less (no icing, no condensing)
Vibration Resistance - Double amplitude, 1.5mm, 10 to 30Hz, each 2 hour in X, Y and Z directions
Impact Resistance - 500m/s2 each 10 time in X, Y and Z directions
Protective Structure - IP60 (IEC standard), available up to IP64 by user option
Case Material - ABS resin
Weight- 500g approx
