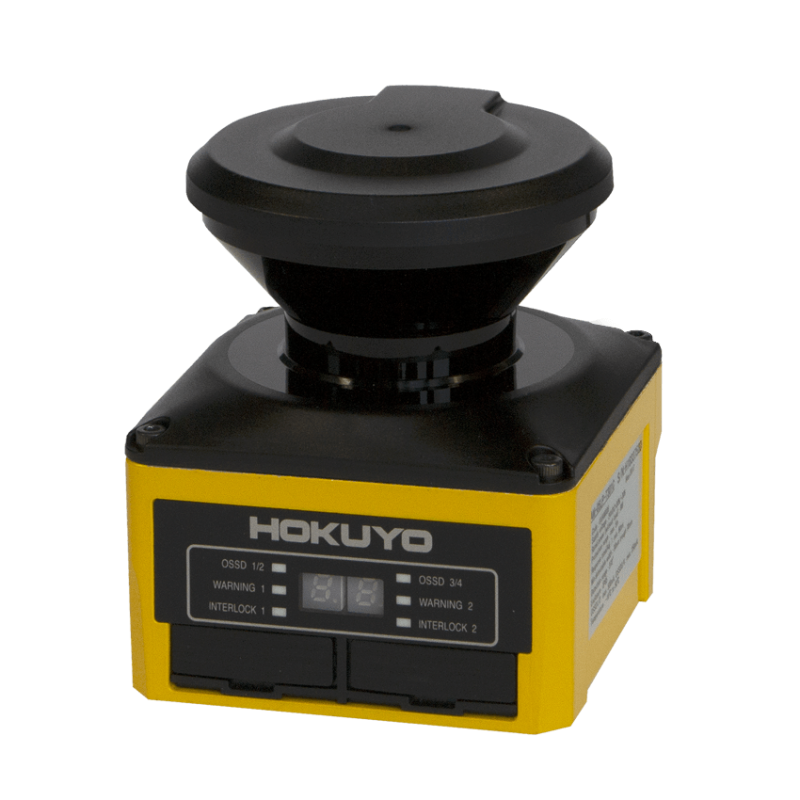

UAM-05LP-T301
Overview
High performance safety LiDAR. 5m safety zone plus 2 additional warning zones up to 20m. 40m measurement data is also available via Ethernet for AGV navigation.
Common Applications
AGV navigation
Human Safety
Static guarding
Operation Benefits
Indoor/ Outdoor - Indoor
Range - 5m safety range / 20m warning range
Scan window/ angle - 270°
Communication - Ethernet 100BASE-TX
Dimensions (l x w x h) - 80mm x 80mm x 95mm
Weight - 800g
Technical Information
Technology - Time of Flight
Range - 5m safety range / 20m warning range
Field of View - 270°
Product details
- Protection range - Max 5m
- Warning range - Max 20m
- Distance tolerance - + 100mm
- Detection capability - From black-reflector sheet (1.8%) to retro-reflector sheet
- Detectable range - 270°
- Minimum detectable width - ∅ 30mm (max : 1.8m) ∅ 50mm (max : 3m) ∅ 70mm (max : 5m)
- Scan frequency - 30ms (rotational speed 2000rpm)
- Area pattern - Max 32 patterns
- Response time - OFF 60ms - 510ms | ON 270ms - 510ms
- Element - Pulsed laser diode
- Wave length - 905nm
- Safety class - Laser class 1
- Type - Type 3 (IEC 61496–1, IEC 61496–3)
- Functional safety - SIL 2 (Type B, HFT=1) (IEC61508)
- PFHd - 7.8×10-8 (T1=20 year) : When master slave function is not in use. 1.6×10-7 (T1=20 year) : When master slave function is in use.

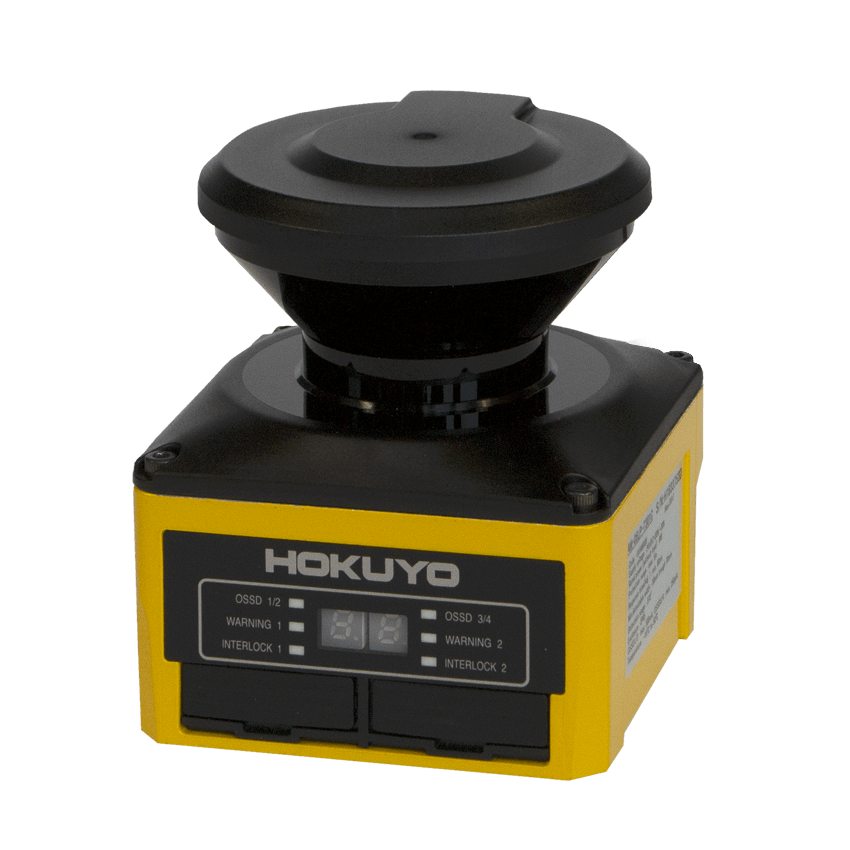

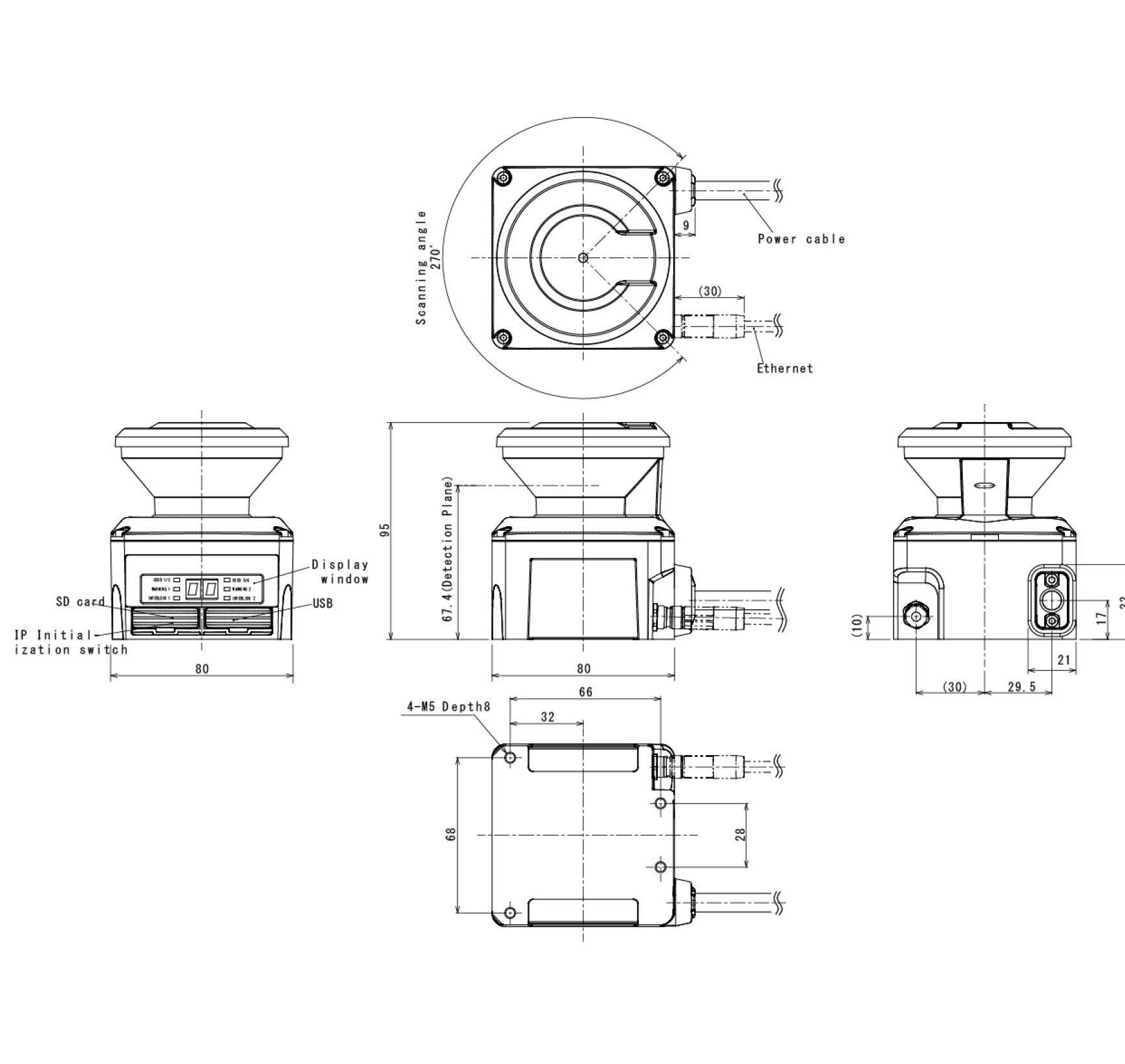

- Size - (l x w x h) - 80mm x 80mm x 95mm (without cable)
- Weight - Approx. 800g (excluding cable)
- Protection - IP65
- Power supply - DC 24V ±10% : when operation using converter power supply DC 24V −30% / +20% : when operating using battery
- Configuration - USB2.0 (USB micro type-B connector)
- Data output - Ethernet 100BASE-TX
- Connection cable - Flying lead cable length : 3m
