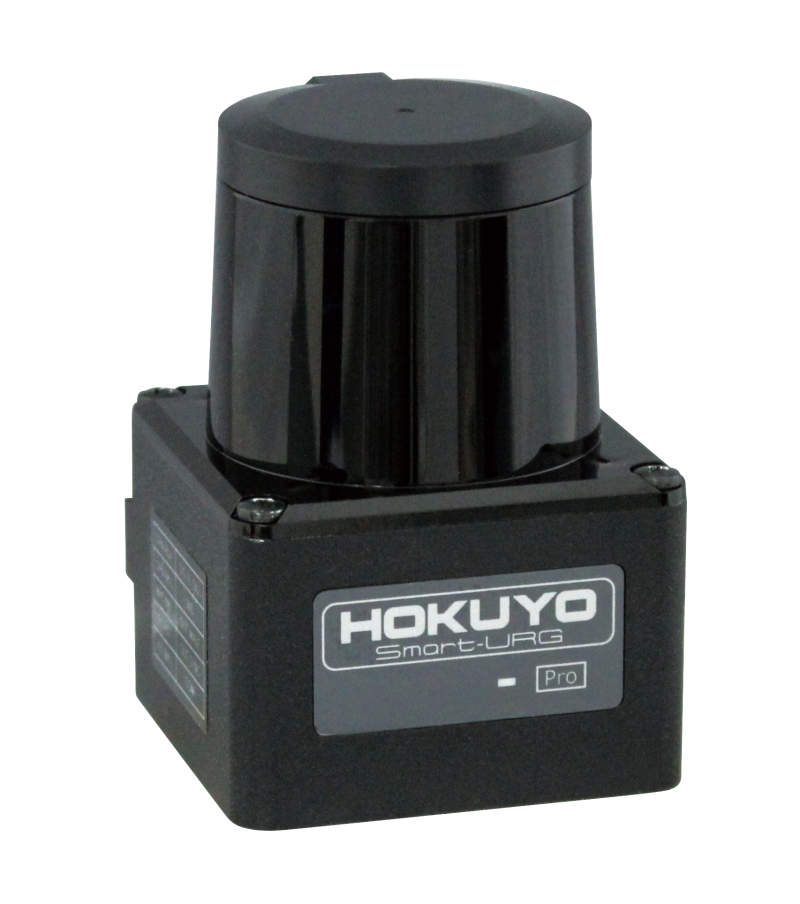

UST-30LC-X01

The Hokuyo UST-30LC is the first outdoor model with hybrid performance of field evaluation & distance measurement. The compact LiDAR offers a high scan speed, coupled with great scan resolution and distance with up to 3 echos even in harsh environments, with the advantage of Ethernet data output. The X01 version is supplied with a M12 and C10 connector instead of a 1m captive cable.

• Range - 30m
• Field of View - 270°
• Resolution - 0.125°
• Scan Speed - 40Hz (25ms)
• Multi Echo - Yes - 3 echoes
• Type (2D/3D/RADAR) - 2D
• Supply current - 150mA or less (during start up 450mA is necessary)
• Output - Output 1-3, malfunction output, synchronous output, photo-coupler, open collector output 30V DC 50mA MAX
• Input - 4 inputs (area switching, input 4 optional as SYNCH)
• Weight - Approx. 130g
• Accuracy - ±40mm
• Operating Temperature Range - -30ºC to 50ºC Less than 85% RH (Without dew, frost)
• Detection range - 0.05m to 30m (white Kent sheet) Max. 60m
• Detection range at 10% reflectivity - 0.05m to 12m (diffuse reflectance 10% )
• Repeated accuracy - Standard Deviation σ < 20mm
• IP Rating - IP67
• Connections - Power, I/O: M12 X5 0.15m cable; Ethernet: C10: 0.15m cable
• Light source - Laser semiconductor (905nm); Laser class 1
• Supply voltage - 12VDC / 24VDC (Operation range 10 to 30V ripple within 10%)
